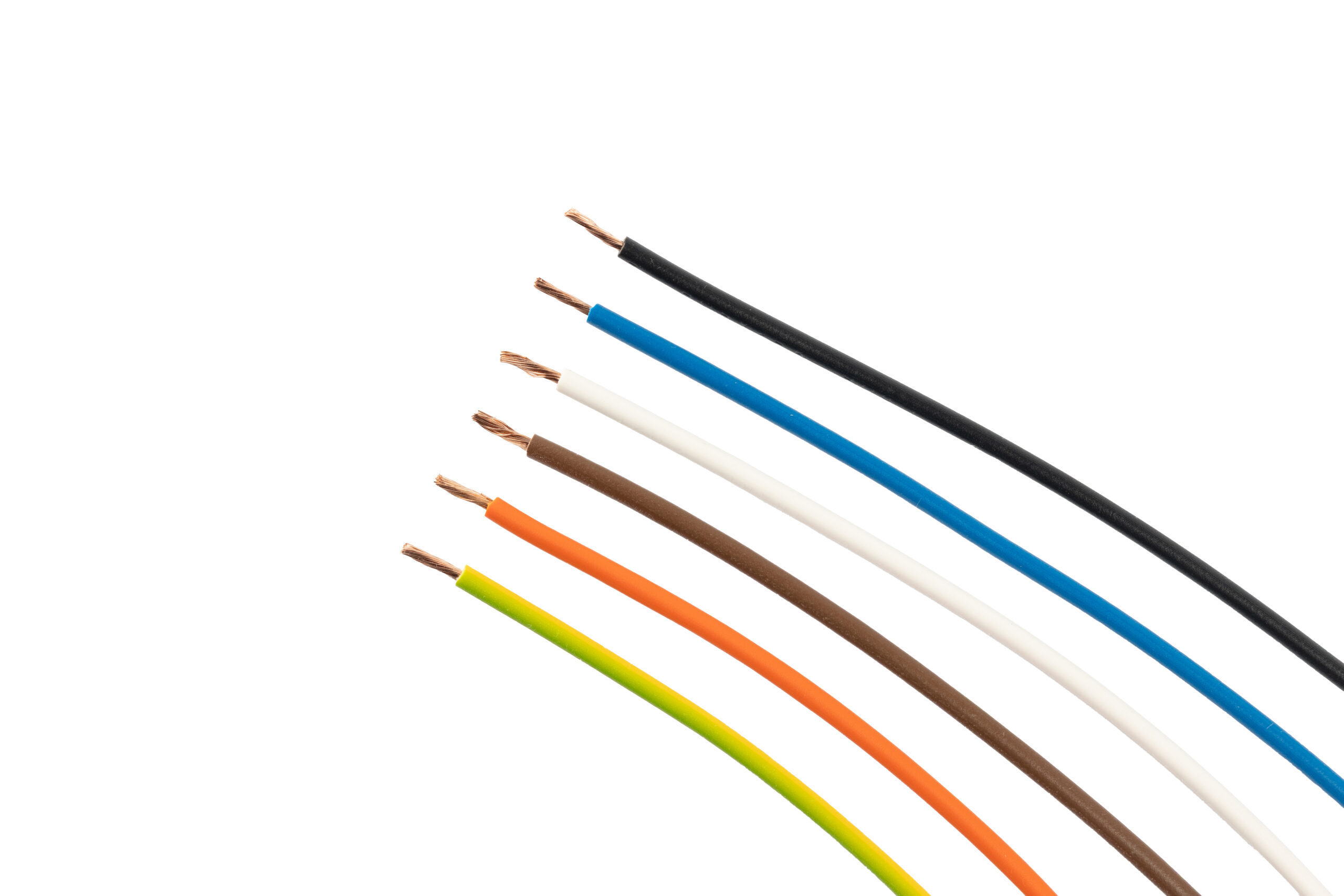

PVC CABLE: H05V2-K; STYLE 1015
Flexible single-core cables, insulated with PVC, without sheath. Comply with the American UL and CSA regulations and the European regulation.
CONSTRUCTION FEATURES
| Conductor | Flexible |
|---|---|
| Insulating | PVC |
| Sheath | - |
| Type | Single-core |
| Shape | Round |
| Isolation | PVC |
TECHNICAL FEATURES
| Operating temperature [°C] | -20°C÷90°C |
|---|---|
| Nominal voltage Uo/U | 300/500 V (EU) | 600 V (USA) |
| Test voltage | 2500 V |
APPROVALS
   |
|---|
NOMENCLATURE
| H05V2-K | STYLE 1015 |
|---|
APPLICATION
| Solid single-core cables, insulated with PVC, without sheath, for internal cables with maximum temperature in continuous service of 90°C. Suitable for fixed protected installation inside equipment and lighting fixtures. Good smoothness in the pipes, good flexibility and abrasion resistance. |
|---|
| Suitable for fixed installation |
| Suitable for indoor installation |
COLORS
  |
|---|
MEASURES
| Size conduction [mm2] | Outer diameter [mm] |
|---|---|
| 1X0,50 | 2.45±0.1 |
