PVC HALOGEN FREE: H05Z-K; H07Z-K

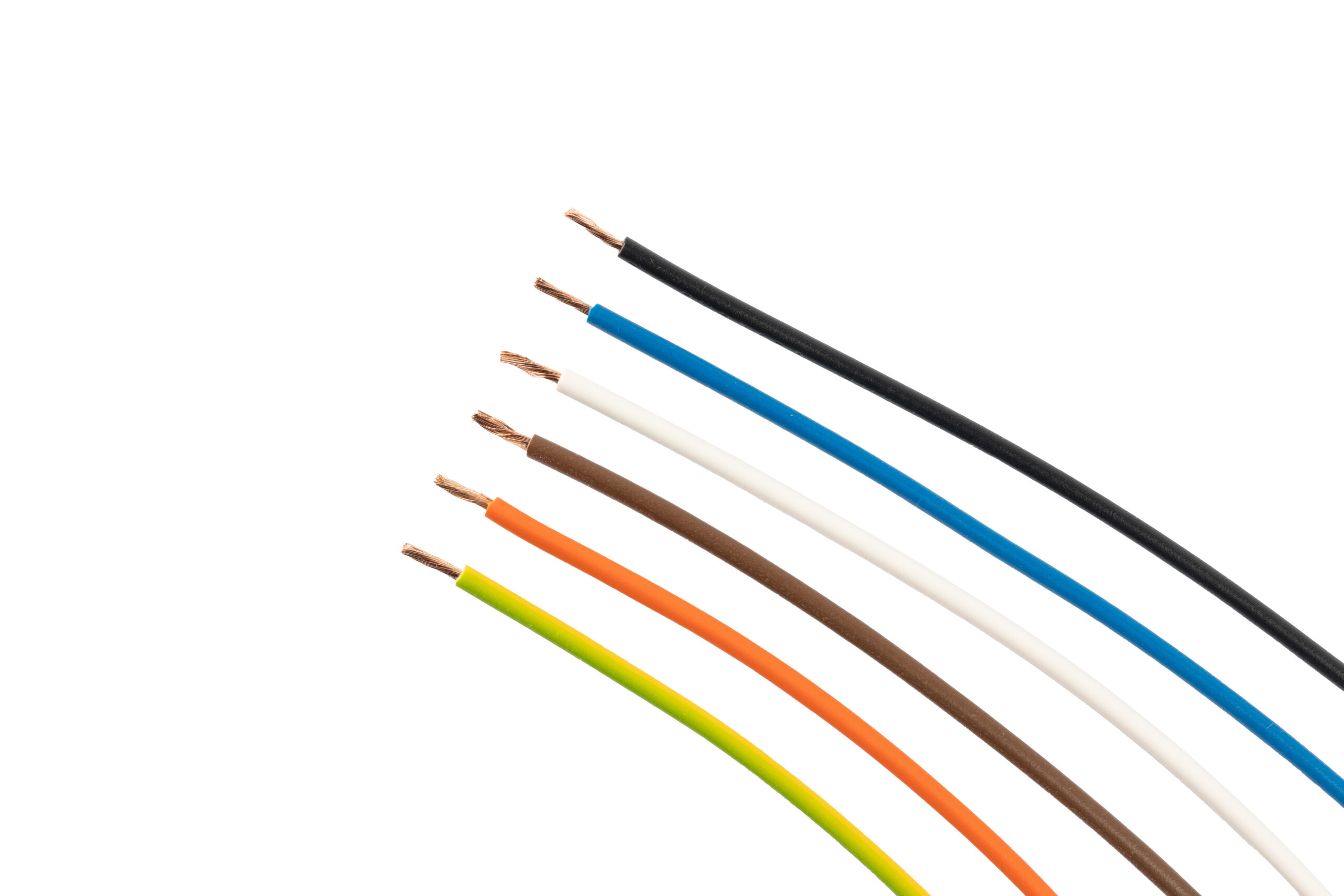

Flexible single core rubber insulated electric cables, with low emission of fumes and corrosive gases, sheathless.
CONSTRUCTION FEATURES
| Conductor | Flexible |
|---|---|
| Insulating | LSOH rubber |
| Sheath | - |
| Type | Single-core |
| Shape | Round |
| Isolation | Rubber |
TECHNICAL FEATURES
| Operating temperature [°C] | -10°C÷90°C |
|---|---|
| Nominal voltage Uo/U | 300/500 V |
| Test voltage | 2000V |
APPROVALS
  |
|---|
NOMENCLATURE
| H05Z-K | H07Z-K |
|---|
APPLICATION
| Recommended for use in dry environments for the wiring of lighting fixtures, appliances and units where valuable assets are to be protected from future damage of fire, smoke and corrosive gas. Designed for the internal wiring of switchboards and distributor boards. |
|---|
| Suitable for fixed installation |
| Suitable for indoor installation |
COLORS
     |
|---|
MEASURES
| Size conduction [mm2] | Outer diameter [mm] |
|---|---|
| 1X0,50 | 2.1±0.1 |
| 1X0,75 | 2.33±0.1 |
