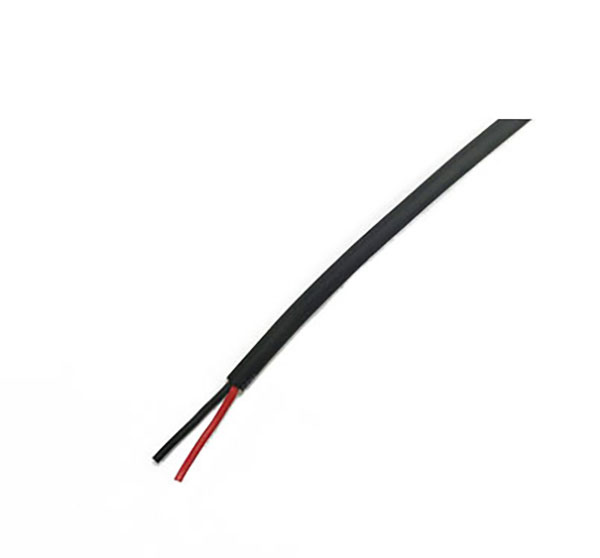

RUBBER INSULATED CABLE: RED-BLACK
Multi-core flexible cable rubber insulated with black and red inner cores
CONSTRUCTION FEATURES
| Conductor | Flexible |
|---|---|
| Isolante | Gomma EI4 |
| Sheath | Gomma EM2 |
| Type | Multicore |
| Shape | Round |
| Isolation | Rubber |
TECHNICAL FEATURES
| Operating temperature [°C] | -25°C÷60°C |
|---|---|
| Nominal voltage Uo/U | 300/500V |
| Test voltage | 2000V |
APPROVALS
   |
|---|
NOMENCLATURE
| 05RN-F |
|---|
APPLICATION
| Multi-core flexible cable insulated in epr rubber under medium polychloroprene sheath. Suitable for installations in domestic premises, kitchens and offices for applications in ordinary service and for powering appliances in which the cables are subject to weak mechanical stress. Permanent use outdoors and in the presence of water is allowed (condition AD2). Flame resistant CPR (IEC 60332-1-2) and oil resistant (EN 50363-2-1). |
|---|
| Suitable for mobile installation |
| Suitable for fixed installation |
| Suitable for indoor installation |
| Suitable for outdoor installation |
COLORS
 |
|---|
MEASURES
| Size conduction [mm2] | Outer diameter [mm] |
|---|---|
| 2X0.75 | 6.10±0.2 |
